系统配件

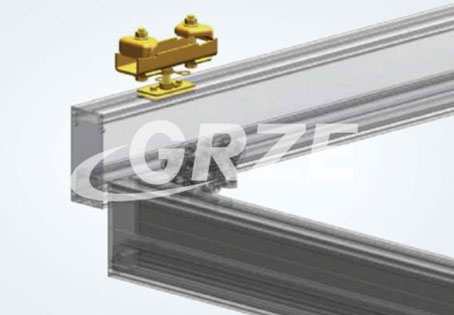

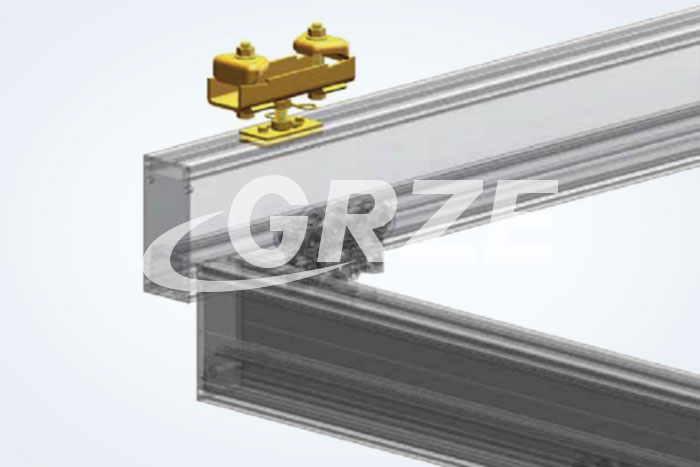

柔性吊点:

约90%的轨道系统是通过柔性吊点与顶棚结构连接起来。

无论在何种情况下,这种安装类型应成为您轨道系统安装的选择。如果轨道系统因机械手、吊升装置或伸缩梁而产生向上作用力,那么只能采用刚性吊点。

有三种不同尺寸可供选择,可固定宽度为50mm-310mm的法兰。

About 90% of track systems are connected to the roof.

structure through flexible suspension points in any case. this type of installation should be the first choice for your track system installation. if the upward force of t廿he track system is caused by the manipulator,lifting device or telescopic beam, the rigid lifting point can only be used.

There are three different sizes to choose from  Fixed width is 50 mm - 310 mm.



特征/Featue

柔性吊点50-150
   Pendular mountings 50-150

柔性吊点150-250
   Pendular mountings 150-250
柔性吊点250-310
   Pendular mountings 250-310
承重能力
Load bea rlng capablllty
2000kg2000kg2000kg
宽度调整(法兰宽)
   Width adjustment(flange width
50 mm-150mm150 mm-250mm250 mm-310mm
高度调整
Height adjustment
85-105mm85-105mm85-105mm
重量/Weight3.8 kg4.3kg4.8kg
编号/Item no001207100120860012102
